9O59 | pdb_00009o59

ZnO Nucleated Z4-C3i Trimer Within the Octahedral Z4-Cage Nanoparticle

PDB DOI: https://doi.org/10.2210/pdb9O59/pdb
EM Map EMD-70128: EMDB EMDataResource

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-04-09 Released: 2026-05-06
Deposition Author(s): Borst, A.J.
Funding Organization(s): Howard Hughes Medical Institute (HHMI)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

De novo design of metal-oxide templating proteins

Saragovi, A., Pyles, H., Borst, A.J., Baker, D.

To be published.

Macromolecule Content

Total Structure Weight: 99.71 kDa
Atom Count: 6,625
Modeled Residue Count: 852
Deposited Residue Count: 912
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

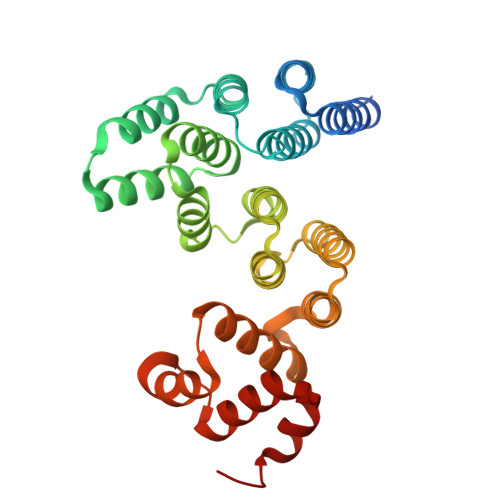

Z4-Cage Nanoparticle	A, B [auth D], C [auth G]	304	synthetic construct	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
MODEL REFINEMENT	ISOLDE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-05-06

Deposition Author(s):

Borst, A.J.

Funding Organization	Location	Grant Number
Howard Hughes Medical Institute (HHMI)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-05-06
Type: Initial release
